Map XSight Topics in SOTI XSight

Before you begin

You must have an XSight topic configured using JavaScript or Blockly to send data to SOTI XSight. See these topics for more information:

About this task

To fully use the XSight topics you created in SOTI Snap, you must map them as custom topics in SOTI XSight. Once mapped, the XSight topic data entered in your SOTI Snap app is available in SOTI XSight Live View.

Note: This procedure assumes the user is familiar with creating views in Live View.

Procedure

  1. Open SOTI XSight.
  2. From the main menu, select Live View. The Live View window opens.

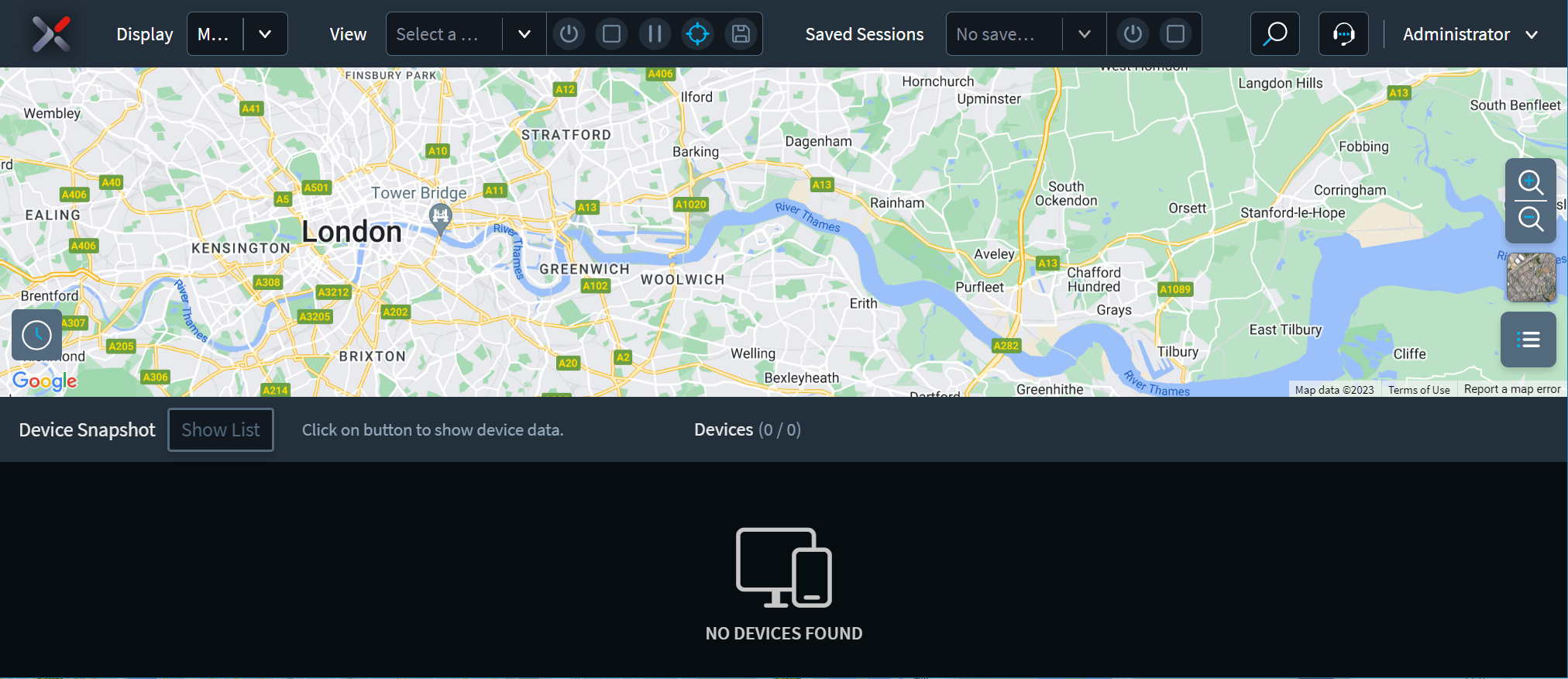

    SOTI XSight Live View window
  3. From the View list, select or create a new view to retrieve data from an XSight topic.
  4. Open the view for editing. The Edit View window opens.
    SOTI XSight Edit View window
  5. Select Edit Topics. The Edit Topics window opens.

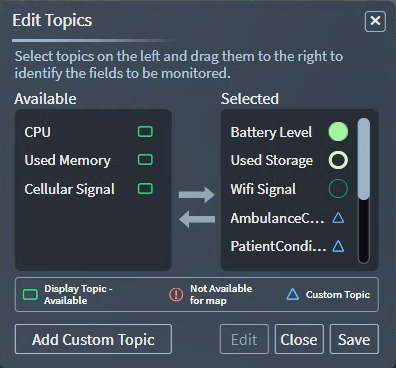

    Edit Topics window.
  6. Select Add Custom Topic. The Add Custom Topic Wizard opens.
  7. Select Next.
  8. Give the following details when prompted:
    Value type Select whether the values retrieved from your SOTI Snap app are numeric (integer) or alphabetical (string). You may use them to set color indicators on icons if you expect consistent value ranges.
    Collection Frequency Select how often SOTI XSight updates the information for this topic.
    Parameters for retrieving data with the XT Socket for SOTI Snap. Select Retrieve Data from SOTI Snap App.
    Display Prompt Text Give a name to the data field for display in SOTI XSight Live View.

    Display Prompt Text field

    Topic Identifier The topic identifier is the XSight topic ID.
    To find the XSight topic ID:
    1. From SOTI Snap's Data Collection Rules, select XSight Topics.
    2. Select the XSight topic you are mapping. A Details window opens.

      XSight topic Details window

    3. Copy the XSight Topic ID.
    4. Return to SOTI XSight and paste the value in Topic Identifier.

      Topic Identifier field

  9. Select Finish. The new custom topic lists as Selected.
    Custom topic added
  10. Select Save.

Results

Your XSight topic maps as a custom topic in SOTI XSight and is available with other device details in SOTI XSight Live View.

SOTI XSight Device Details window

What to do next

Repeat this procedure for every XSight topic you wish to map.
