Floor Plan Image Layering

About this task

If you have an outdated floor plan image (*.png or *.jpg), you can incorporate recent changes by uploading the old floor plan as a background image in Design Studio and making new changes on top.

Procedure

  1. Select the Save > Insert > Floor Flan

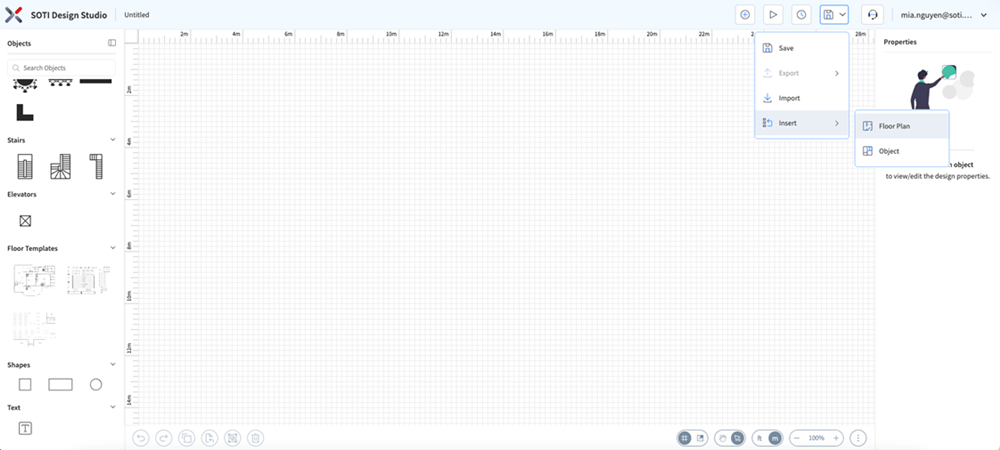

    Select Save->Insert->Floor Plan
  2. The Floor Plan is uploaded to the background to allow edits on top.

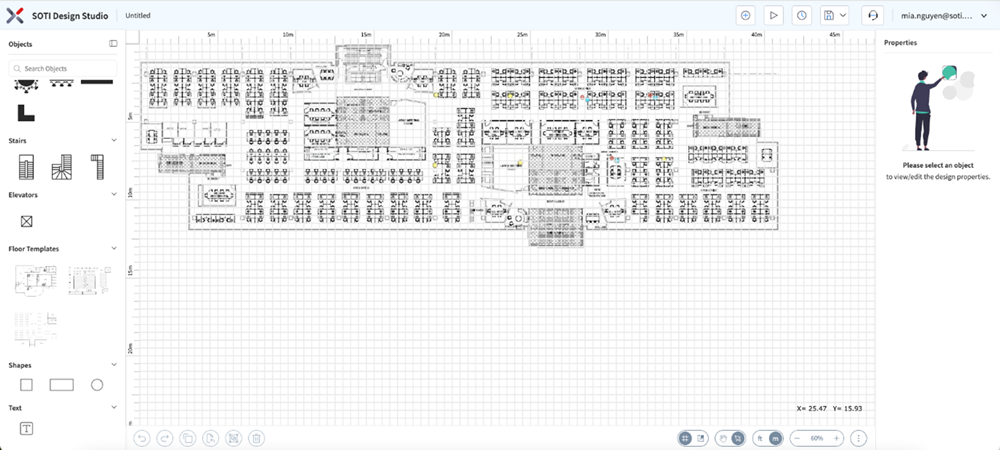

    The uploaded floor plan allows you to make edits on top of it
    Note: Use Hide Grid for better visibility.

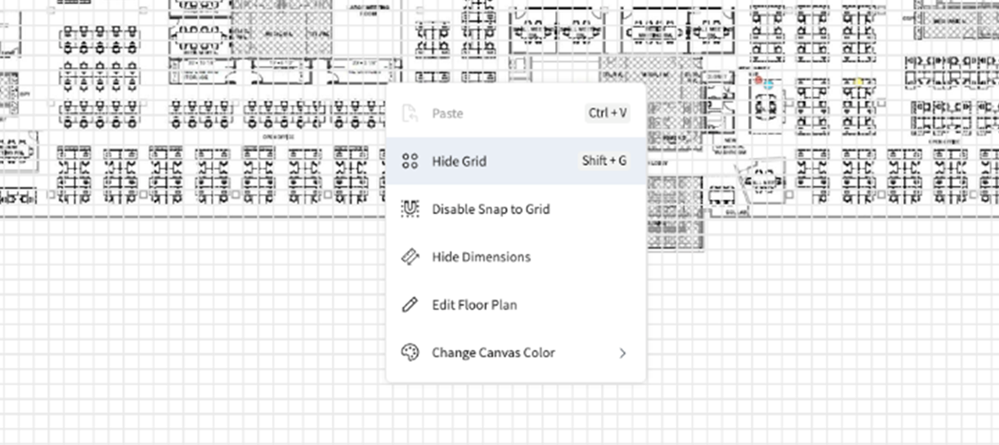

    Select Hide Grid for better visibility

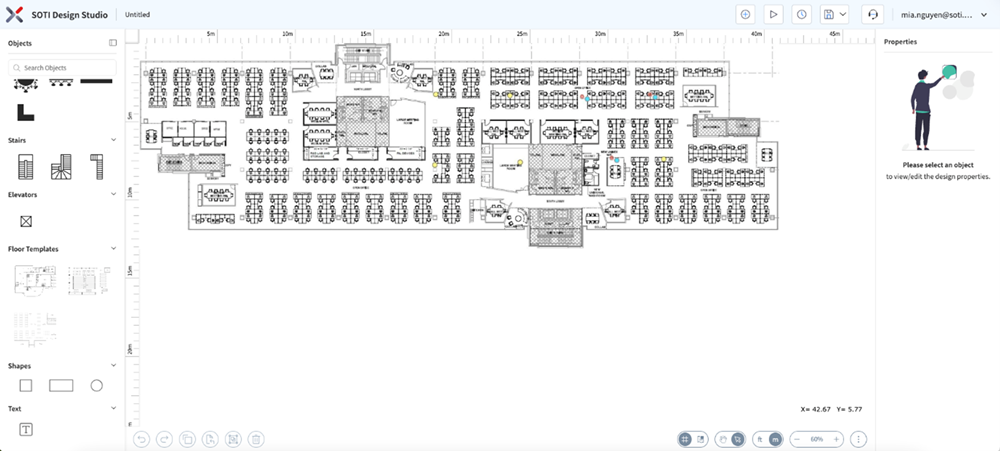

    Visibility is improved with Hide Grid selected
  3. Add new changes to your design.

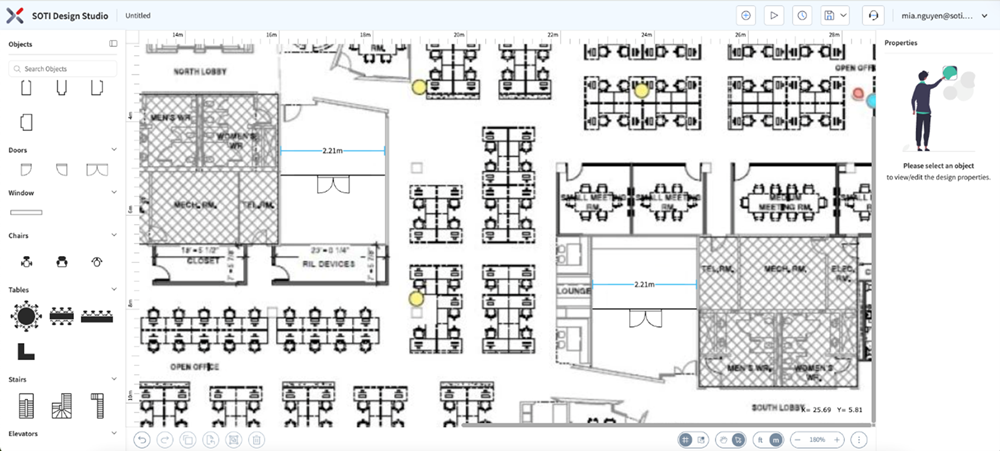

    Add new changes to your design

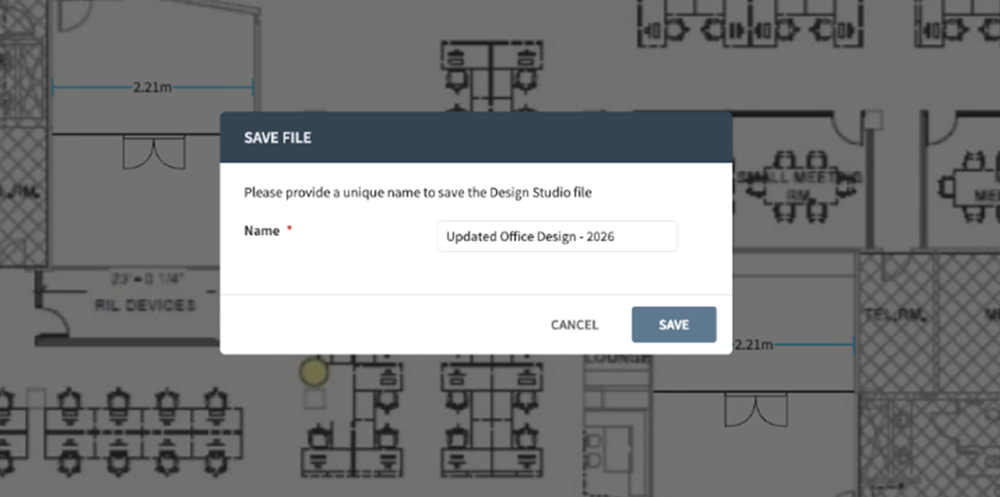

  4. Select Save to save your design.
