The Device Tab

The Device tab in the device information panel displays key properties and system details for the selected device. Administrators can use this tab to review essential device information such as hardware specifications, OS version, enrollment status, and more. See Viewing Device Information for instructions on accessing this panel.

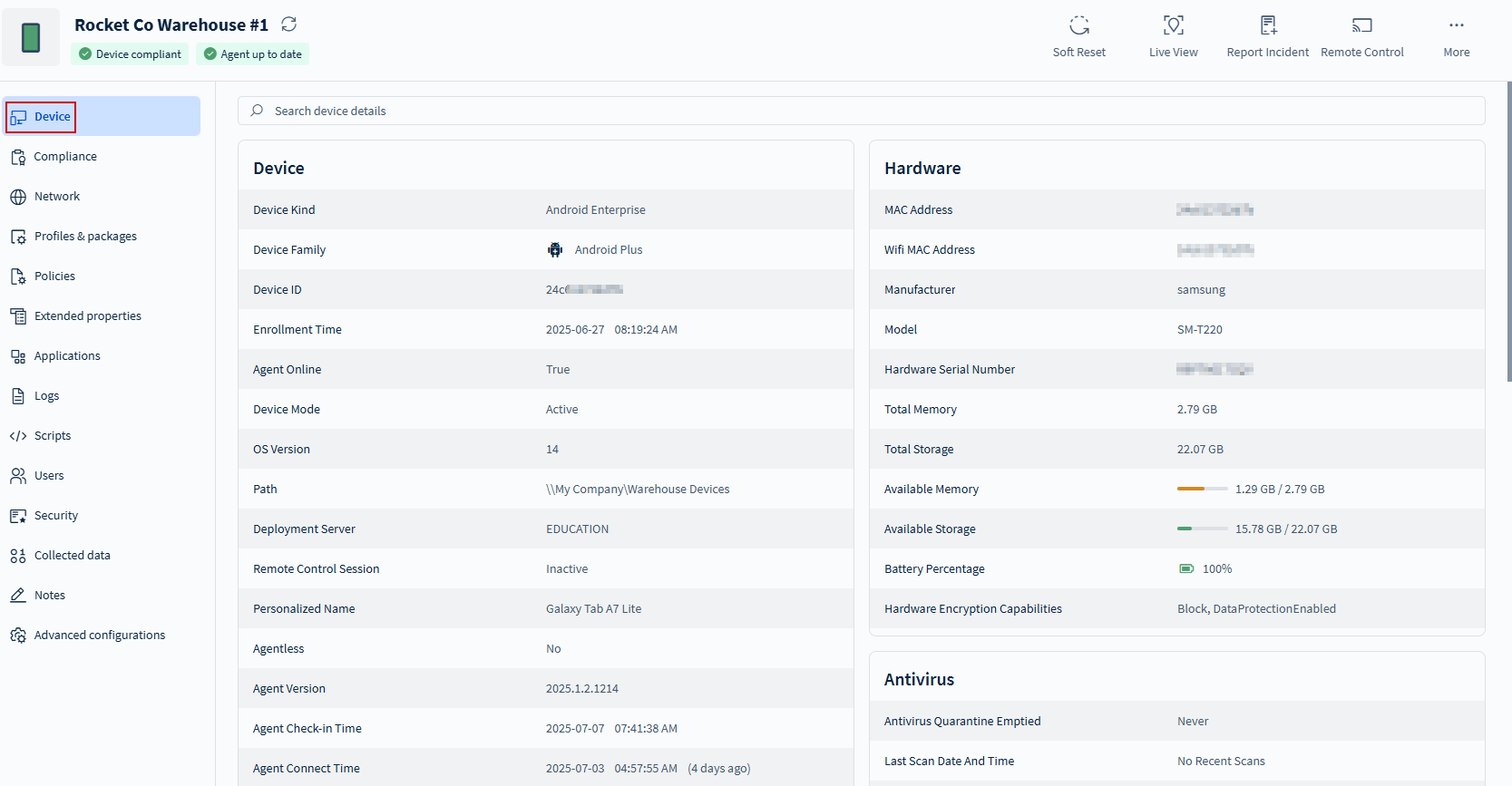

The Device information panel
Tip: Use the search bar to quickly locate specific device properties or values within the Device tab.

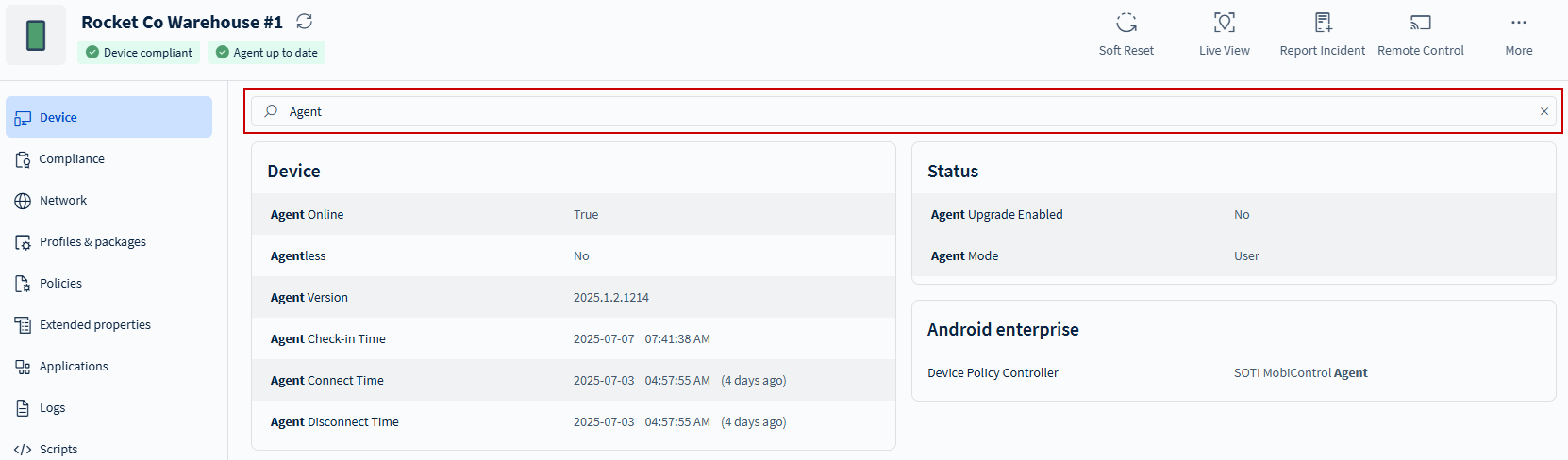

Searching device information.

Feature Availability

Specific features depend on the SOTI MobiControl version and device type:

  • VPN IPv4 and VPN IPv6 details require SOTI MobiControl 15.4.3 or later.

  • Corporate Owned Personally Enabled (COPE) devices do not support VPN details.

  • BitLocker Recovery Key details require additional steps. See Viewing a BitLocker Recovery Key for Windows Modern.

The Device Details tab organizes information into the following sections based on platform compatibility.

Section Details Platform
Antivirus Displays Windows Defender configuration and scan details:
  • Sync: Use the Sync button to fetch the latest antivirus details.
  • Last Synced On: Shows the last successful sync.
  • Scan History: Displays timestamps for the previous quick and full scans.
  • Active Threats: Indicates unresolved security risks.
    • True: Windows Defender requires manual intervention.
    • False: Windows Defender has mitigated detected threats.
  • Quarantined Threats: Displays the number of quarantined threats.
  • Threat History: Provides access to the entire history of detected threats.
Important: Antivirus details do not update automatically after upgrading SOTI MobiControl. Sync manually before reviewing data.
 Windows Modern devices
App Store Licenses
Cellular Details
Compliance
Custom Attributes
Device Lists general device properties, such as:
  • Device Kind, Family, and OS Version
  • Unique Identifiers
  • Available device details vary by platform. See Available Device Details for more information.
  • Android Plus
  • Windows Mobile/CE
  • Windows Modern
  • Windows Desktop Classic
  • Linux
  • Apple
Network Displays network connection and configuration details:
  • IP Address & IPv6 Address: Shows current Wi-Fi network addresses.
  • Network Type: Displays whether the device is on Wi-Fi, Ethernet, or Cellular.
  • Network SSID: Identifies the connected Wi-Fi network.
  • Network Authentication: Displays authentication protocols (for example, WPA2, WPA3).
  • Subnet Mask: Specifies network segmentation details.
  • Wi-Fi & Wireless LAN Modes: Indicates whether the device uses infrastructure or ad hoc modes.
  • ICCID: Displays the SIM card identifier.

  • WIFI Root Certificate Serial Number: Displays the serial number of the active Wi-Fi root certificate.

  • WIFI Root Certificate Expiry Date: Shows the expiry date of the active Wi-Fi root certificate.

  • WIFI User Certificate Serial Number: Displays the serial number of the active Wi-Fi user certificate.

  • WIFI User Certificate Expiry Date: Shows the expiry date of the active Wi-Fi user certificate.

  • Proxy URL: Displays the proxy URL the device connects to.

  • Proxy Host: Shows the proxy host the device connects to.

  • Proxy Port: Displays the proxy port the device uses to connect.

Note: This requires Configure devices/device groups permission. The console shows the last known network details if the device is offline. See General Permissions for details.
  • Android Plus
  • Windows Mobile/CE
  • Windows Modern
  • Windows Desktop Classic
  • Linux
  • Apple
Device Statuses
Exchange
Hardware Details
Logged-in User Displays details of the currently logged-in user:
  • Username and Full Name
  • Domain Name and Identifier
  • Last Checked Time: Updates every 10 minutes.
Tip: View past login records in the Logs tab under Current User logs.
Windows Modern devices operating on Windows OS versions 10 and 11
Managed Administrator Account For macOS devices enrolled using Automated Device Enrollment, this section includes:See Enrollment Policy Wizard: Account Type for details. macOS devices
Software Updates Displays details on available OS updates:
  • Available OS Version: Lists pending updates.
  • Rapid Security Response: Identified by a letter in the version number ( for example, 16.4(a)—Rapid Security Response OS version).
 Apple
User Details Displays information about all local users on Windows devices. For Windows Modern, this section includes:
  • Username
  • Group
  • Created by

For Android Enterprise devices, this section includes:

  • User Name
  • First Name
  • Last Name
  • Domain Name
  • UPN
  • Phone Number
  • Email
  • Identifier
  • Windows Modern devices
  • Android Enterprise devices
XTreme Hub Displays SOTI XTreme Hub details for applicable platforms:
  • File Storage Path
  • Number of Target Devices & Target Groups
  • Port
  • Fully Qualified Domain Name (FQDN)
  • XTreme Hub Status
  • Android Plus
  • Windows Mobile/CE
  • Windows Modern
  • Windows Desktop Classic
  • Linux
Targets
  • Target Device: The number of devices the SOTI XTreme Hub serves.
  • Target Groups: The number of device groups SOTI XTreme Hub targets.
  • Groups Targeted: Where SOTI MobiControl assigns and extends the SOTI XTreme Hub.
  • Android Plus
  • Windows Mobile/CE
  • Windows Modern
  • Windows Desktop Classic
  • Linux
Firmware Upgrades For Samsung Knox E-FOTA, displays firmware upgrade details. Once the device uploads successfully to Samsung Knox E-FOTA, the following details appear:
  • Knox E-FOTA Upload Status
  • Knox E-FOTA Enrollment Status
  • Knox E-FOTA Update Status
  • Knox E-FOTA Policy Status
  • Knox E-FOTA Policy Name
  • Target Firmware
 Android Plus devices with Samsung Knox enabled
