Location Service

Set up SOTI XSight Location Service Settings, Encryption Certificate, and external data providers such as Cisco Spaces, Extreme Networks, and Juniper Networks.

Location Service Settings

View and edit the SOTI XSight Location Service settings.

Admin utility Chat Service

Setting Description
SOTI XSight Location Service host names The host names of the machine where Location Service is installed. Can have multiple values (comma separated) if the machine has more than one DNS mapping.
SOTI XSight Location Service ports The ports where location service is listening. Can have more than one value (comma separated).

Encryption Certificate Settings

View and edit the SOTI XSight Encryption Certificate settings.

Edit Location Service encryption certificate

Setting Description
SOTI XSight Client Certificate This certificate is used for internal communication between the SOTI XSight services. The certificate’s expiration date displays here. As the expiration date approaches, you can generate a new certificate by selecting the Generate New icon.
SOTI XSight

Encryption Key Rotation

For security purposes, you can periodically rotate the encryption keys. To rotate the encryption keys, select an existing certificate from the dropdown list, or generate a new one (by selecting the Generate New icon), and then select Rotate Keys. On a multi-server environment, you must distribute the certificate to all machines. To do this with a generated certificate, open the Administration Utility on each machine and then select Install Certificate. If a custom certificate is selected, the user must install the certificate manually.

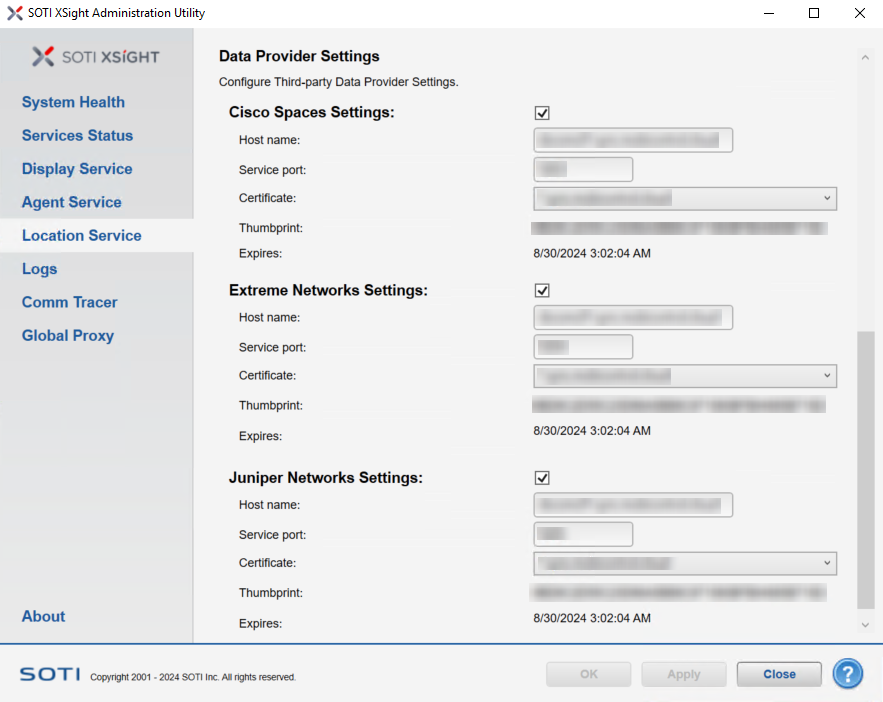

Data Provider Settings

View and edit the SOTI XSight Data Provider settings.

View and edit the database for SOTI XSight Chat Service in this section.

Setting Description
SOTI XSight Cisco Spaces host name The public host name where the Cisco Spaces API is hosted
SOTI XSight Cisco Spaces service port The public port where the Cisco Spaces API is listening.
SOTI XSight Cisco Spaces certificate SSL certificate used to host the API where Cisco Spaces data provider connects and sends data to.
SOTI XSight Extreme host name The public host name where the Extreme API is hosted
SOTI XSight Extreme service port The public port where the Extreme API is listening.
SOTI XSight Extreme certificate SSL certificate used to host the API where Extreme data provider connects and sends data to.
SOTI XSight Juniper host name The public host name where the Juniper API is hosted
SOTI XSight Juniper service port The public port where the Juniper API is listening.
SOTI XSight Juniper certificate SSL certificate used to host the API where Juniper data provider connects and sends data to.
