SOTI VPN | Configuring Service Settings

About this task

Configure an IP address pool and an authentication-key validity period for your SOTI Virtual Private Network (VPN) service.
Important: You must have Manage SOTI VPN permissions to configure SOTI VPN service settings.

Procedure

  1. From the SOTI MobiControl hamburger menu, select Global Settings > MobiControl Services > SOTI VPN.

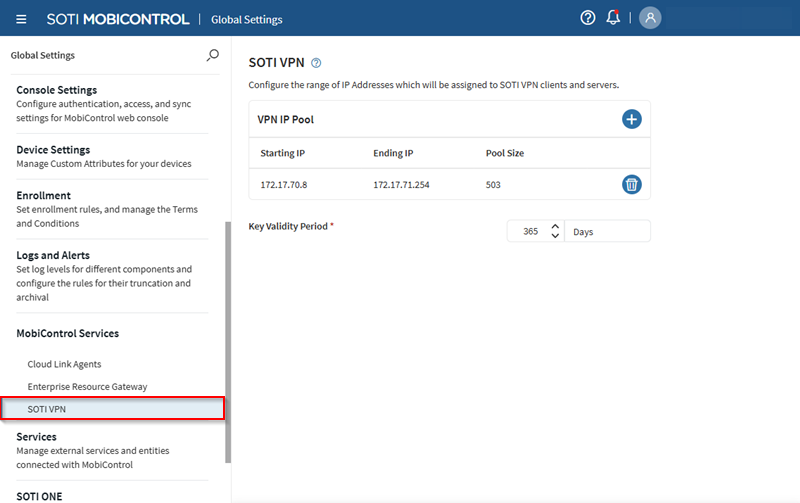

    The SOTI VPN page.
  2. In the VPN IP Pool section, define a distinct IP address pool for your VPN by selecting to add a Starting IP and an Ending IP. Defining a range displays a Pool Size that lists the amount of IP addresses in the specified range.
    When a device gets a SOTI VPN profile payload, it receives an IP address from this pool. SOTI VPN servers also receive IP addresses from the same address pool.
    Tip: In scenarios such as a key renewal or revoking and re-applying SOTI VPN payloads, you must generate a new IP-key pair before removing the older one. Have extra IP addresses available to ease this process.
    Important: Before deleting an IP pool, make sure that an alternative IP pool is available for devices to receive IP addresses.
  3. Set a Key Validity Period value. This determines how long authentication and encryption keys exchanged between the VPN server and its client devices remain valid before renewing.
    Important: Modifying the key validity period value is not recommended unless required for troubleshooting.
    Note: A SOTI VPN server receives the key upon enrollment and is valid for the specified duration. When a device's SOTI VPN key passes the validity period, a check-in action is required to keep the SOTI VPN active.

What to do next

Enroll your SOTI VPN server. See Enrolling SOTI VPN Servers.
