iOS Agent Install Methods |
The MobiControl Device Agent is the MobiControl software that is installed onto mobile devices. The Device Agent communicates with MobiControl Deployment Server(s) and carries out the instructions it receives from servers. Device Agents also provide reporting and real-time information to Deployment Servers.
When looking to manage iOS devices, MobiControl has 2 ways to help. First method is Agentless, this method allows administrators to manage all aspects of the device. Second method includes a Device Agent from the App Store, this method allows administrators to have a little more control over the iOS device and gain more stats.
Agentless Installation
When the add devices rule has been created, it will provide you the option to "Publish to Enrollment Service", if you choose not to publish to the Enrollment Service then an "Enrollment URL" will be provided. Simply navigate to the Enrollment URL on the iOS Device(s) you wish to manage, and complete any steps listed. For more information please Adding iOS Devices and Enrolling iOS devices using a MobiControl Certificate

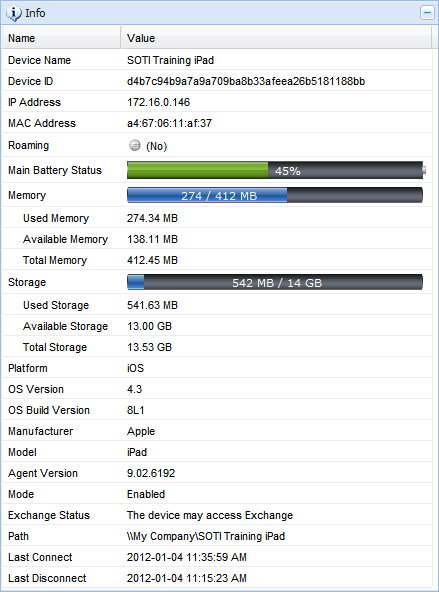

Once enrollment has been completed, you will now see the device on the iOS Devices Tab. Under the Device Info panel, the following information will be collected:
| Device Information | Description |
|---|---|
| Device ID | Device ID |
| DeviceName | The name given to the device via iTunes. |
| OSVersion | The version of iOS the device is running. |
| BuildVersion | The iOS build number (8A260b, for example). |
| ModelName | Name of the device model, e.g. "iPod Touch". |
| Model | The device’s model number (MC319LL, for example). |
| ProductName | The model code for the device (iPhone3,1, for example). |
| SerialNumber | The device’s serial number. |
| DeviceCapacity | Amount of total space on the device |
| AvailableDeviceCapacity | Amount of space available |
| CellularTechnology | Returns the type of cellular technology (none, GSM, CDMA) |
| IMEI | IMEI |
| MEID | MEID |
| ModemFirmwareVersion | The baseband firmware version. |
| ICCID | The ICC identifier for the installed SIM card. |
| BluetoothMAC | Bluetooth MAC address. |
| WiFiMAC | Wi-Fi MAC address. |
| CurrentCarrierNetwork | Name of the current carrier network. |
| SIMCarrierNetwork | Name of the home carrier network. (Note: this query is supported on CDMA in spite of its name.) |
| CarrierSettingsVersion | Version of the currently-installed carrier settings file. |
| PhoneNumber | Raw phone number without punctuation, including country code. |
| DataRoamingEnabled | The current setting of the Data Roaming setting. |
| isRoaming | Returns whether the device is currently roaming. |
| SubscriberMCC | Home Mobile Country Code (numeric string). |
| SubscriberMNC | Home Mobile Network Code (numeric string). |
| CurrentMCC | Current Mobile Country Code (numeric string). |
| CurrentMNC | Current Mobile Network Code (numeric string). |
| HardwareEncryptionCaps | Bitfield. Describes the underlying hardware encryption capabilities of the device. Values are described in Table 8 (page 23). |
| PasscodePresent | Set to true if the device is protected by a passcode. |
| PasscodeIsCompliant | Set to true if the user's passcode is compliant with all requirements on the device, including Exchange and other accounts. |
| PasscodeIsCompliantWithProfiles | Set to true if the user's passcode is compliant with requirements from profiles. |
Additional information is available when the Device Agent is installed, please see below for more information.
Device Agent Installation

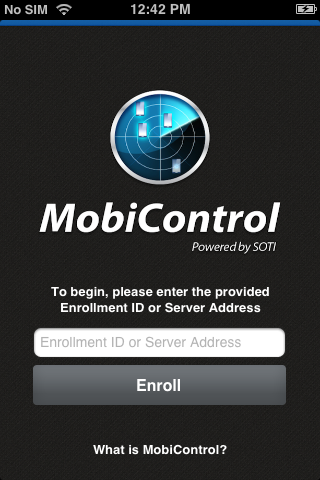

The Device Agent is only available from the App Store by searching for MobiControl. Once the Device Agent is installed, it will require an Enrollment ID which is provided when creating an add devices rule. Once the device has completed all the Enrollment steps required, additional options will be available. For more information on the Enrollment process please Enrolling iOS devices using a MobiControl Certificate
Device Menu
| Device Information | Description |
|---|---|
| AvailableMemory | Available RAM |
| TotalMemory | Total RAM |
| Battery Status | Total % of battery available |
| IP Address | Devices IP Address used to connect to MobiControl |
| Security Status | Detects "Jailbroken" devices |
