Creating a Package Project

---

The first step to creating a package is to create a package project. The following steps explain how to use Package Studio to create a package project:

1. From the Package Studio File menu, select Create New Package Project.

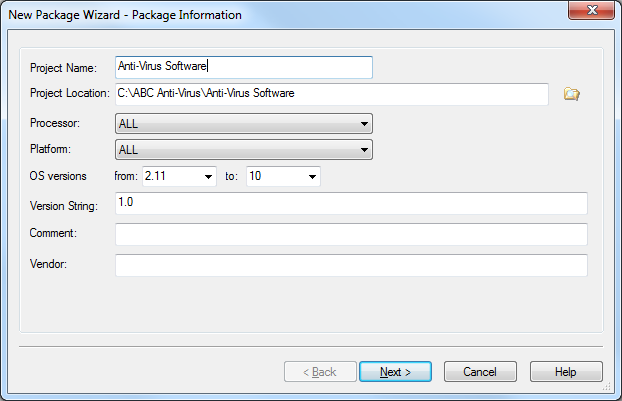

The following table describes the fields in the Package Information page of the New Package Wizard:

Field Name	Description
Project Name	Enter the name of the project you want to create
Project Location	Select the folder and specify the path where you wish to save your project
Processor	Specify the processor of the mobile device which is compatible with the package. In most cases you do not need to modify the default "ALL" setting.
Platform	Select the mobile device platform. In most cases you do not need to modify the default "ALL" setting.
OS Versions	Enter the range of versions of the mobile device on to which the package can be deployed. In most cases you do not need to modify the default settings.
Version String	The version of the package is to be entered here (e.g. 1.0). The version numbers have to be incremented every time you modify the package, before you add the new modified package to the Packages view (tab)in MobiControl Web Console.
Comment	Enter a description for the package. You can optionally leave this field blank.
Vendor	Enter name of the Vendor. You can optionally leave this field blank.

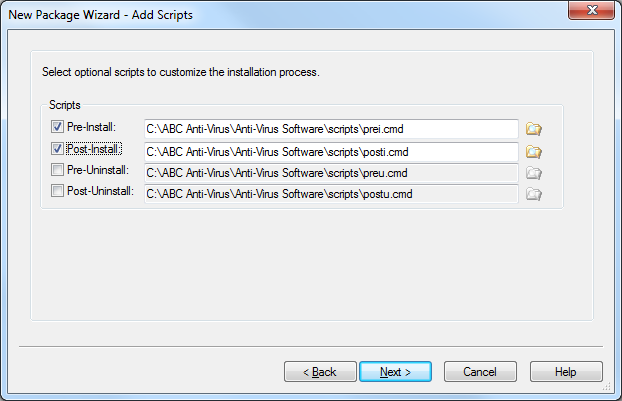

2. Add optional scripts through the Add Scripts page. You may select appropriate scripts you want to execute during installation or uninstallation of this package. Please see the Add Script page for more information.

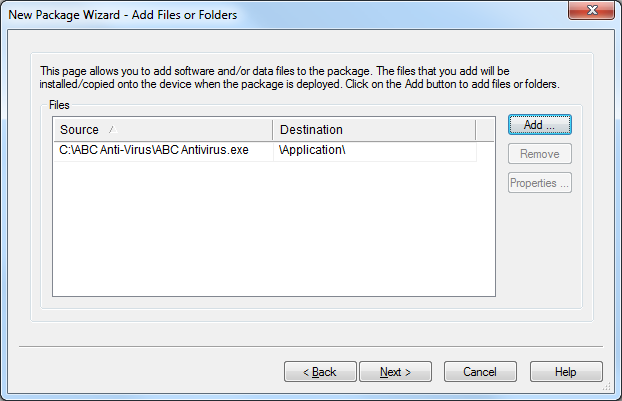

The following table describes the fields in the Add Files or Folders page of the New Package Wizard.

Field Name	Description
Source	The full path to the file on the desktop computer.
Destination	The path on the mobile device where the file is to be installed to.

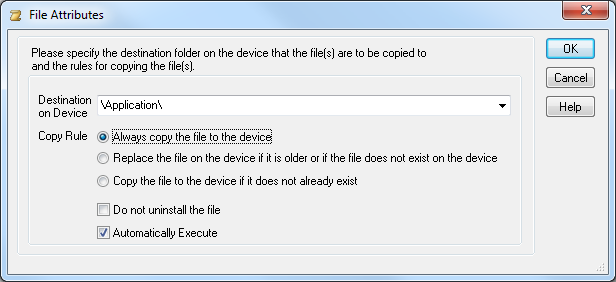

To add a file to the project, click the Add button and browse to the file(s) you would like to add to the project. After selecting the files you wish to add, the File Attributes dialog box will be displayed.

The following table describes the fields in the above dialog box.

Field Name	Description
Destination On Device	The path on the device to where the file is to be copied
Copy Rule	Specifies the condition to be checked before the file is copied to the device. The options available are: Always copy the file to the device Replace the file on the device if it is older than a file with the same name, or if the file does not exist on the device Copy the file to the device if it does not already exist on the device
Do not uninstall the file	When this option is enabled for a file, that file will not be removed or uninstalled from the device even if the package is uninstalled.
Automatically Execute	Enabling this option results in the file being automatically executed or launched on the device after the package is delivered. This option can be used to automatically install an application distributed as a .cab file or to merge the registry settings in a .reg file with the device's registry automatically when the package is installed. Please see the Cabinet File Properties page for more information on suppressing warning messages for end users when installing .cab files and customizing the installation so that the end users are not prompted for locations.

Click OK. When you have finished adding files via the Add File page, click Next.

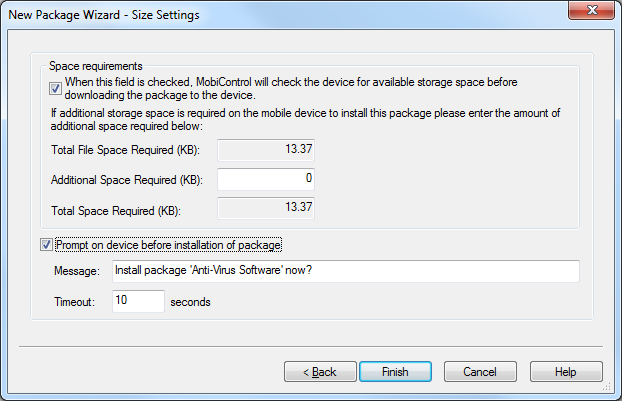

The following table describes the fields in the above dialog box.

Field Name	Description
Additional Space Required (KB)	Specify any additional storage space that may be needed to install the package. When MobiControl tries to install the package it will first check to see if there is enough space on the device to install the package.
Prompt on device before installation of package	If checked, a message box will appear on the device that prompts the user to install the package. If the user clicks No, the package will not be installed, the package will attempt to re-install five times by default and it can also be force a re-installed. The package will attempt to install on the Device Schedule Update. The message box is closed automatically after 10 seconds or if the user clicks Yes the package will continue installation.

6. Click the Finish button to create the project.

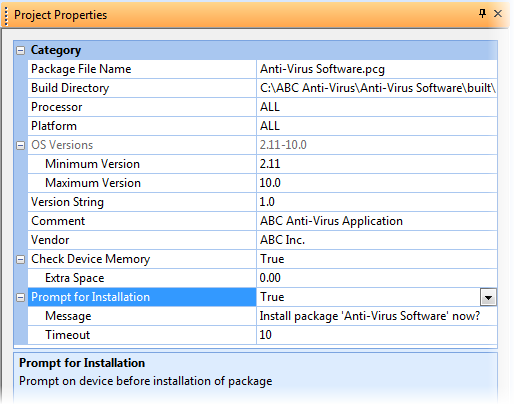

Viewing the Package Project Properties

Once you have created a package project, you can view the properties of the project by selecting Package Properties from the Project menu in Package Studio.
